Here we have compiled the best digital HVAC gauges currently available on the market. Digital HVAC Gauges are specially designed to diagnose an Air Conditioning system. It checks the pressure of an AC system and inspects if it has any leak.
Here in the following, we have brought a complete guide after thorough research. Along with the list of these best HVAC gauges, you will also find buying consideration and FAQs. So, it will be easier for you to purchase the best gauge.
What is the Best Digital HVAC Gauges
The best HVAC vacuum gauges are equipment that is essential for every refrigeration technician. The tool is intended to measure the pressure of refrigerants in refrigeration systems.
Simultaneously with the Vacuum Pump and Vacuum Meter, the Manifold plays an essential role in verifying the information that will guarantee a better and more lasting performance of the air conditioning, refrigerator, and other refrigeration devices.
Read more about: Best UV Light for HVAC System
Best Digital HVAC Gauges for the Money
|Fieldpiece SMAN460 Wireless 4-Port Digital Manifold with Micron Gauge||Check Details|
|testo 550 I Digital Manifold Kit for air conditioning, refrigeration systems and heat pumps - with Bluetooth support||Check Details|
|Fieldpiece SMAN360 3-Port Digital Manifold with Micron Gauge||Check Details|
|BELEY Refrigeration Digital Manifold HVAC System Gauge Set, High-Precision Vacuum Pressure Temperature Leakage Tester Dignostic Meter Kit for Testing Maintaining Air-Conditioner, Refrigerator||Check Details|
|Fieldpiece SM480V SMAN Digital Manifold Wireless Data Logging||Check Details|
|Testo - 0563 1557 testo 557 I Digital Manifold Kit for air Conditioning, Refrigeration Systems and Heat Pumps I 4-Valve HVAC Gauge with Bluetooth||Check Details|
|MASTERCOOL (99872-A Blue R134A Digital Manifold Gauge Set with 72" Hose and Manual Coupler||Check Details|
|testo 550 I Digital Manifold Kit for air Conditioning, Refrigeration Systems and Heat Pumps - with Bluetooth and Set of 3 Hoses||Check Details|
Top 10 Best Digital HVAC Gauges Product Reviews 2021

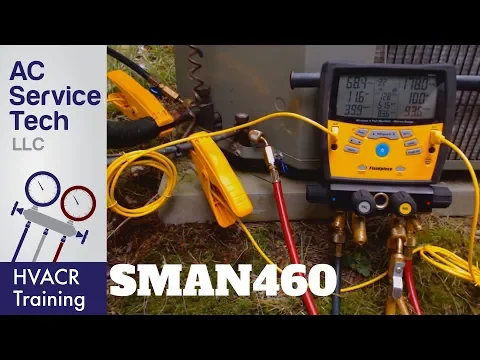

01. Fieldpiece SMAN460 Wrieless 4-Part Digital Manifold Gauge
The wireless digital manifold with the 4th port, SMAN460 is the top of the list from Fieldpiece. It has many features and advantages than any other digital gauges on the market.
With the automatic calculation of the desired superheat, synchronized subcooling and superheat temperatures, and 9 more readings on a single screen, larger and designed exclusively for HVAC professionals.
The 4th widest port for you to make the vacuum faster and to collect gas from the system, in addition to the wireless function that gives you readings in real-time, so you know what is happening inside the system while it is charging or just checking.
Ability to Set an Alarm
An integrated vacuometer that gives technicians and professionals the ability to set an alarm, stopwatch to track micron levels and the rate of resolution.
Activate the Alarm
Activate the alarm for a high micron reading when you separate the system and the timer will restart again. When this system goes up to the stipulated alarm, the timer will freeze.
The large 3/8 inch vacuum hole manifold can be used for faster retrieval and evacuation.
- The 4 ports allow for a 1-time hookup
- Durable construction
- Very good display
- Handle quality is not the best
02. Testo 0563 Digital Gauge Bluetooth Supported
Testo 0563 is one of the best digital HVAC gauges in our top list. This manufacturer has over 60 years of experience in this industry and always offer the best products. Here are some of its best features:
This digital gauge can be connected easily and quickly to your smartphone or tablet using Bluetooth. It is extremely easy and state of the art.
It does not require hoses for measurements that means little or no refrigerant is lost. It comes with a smart case that allows measuring instruments to be transported conveniently, available always when you need it.
One of the best parts of this gauge is that the measurement data can easily be transmitted wirelessly from the instrument to the Testo Smart Probes app. Also, you can view it on your smartphones as a table or as a graph.
It has various practical functions such as automatic calculation of condensation temperatures and evaporation. Once done, the data record can be forwarded as an Excel file or a PDF. Thus, it will save time and you can focus on other tasks.
- Comes with convenient carrying case
- Easy to use
- The price is quite high
Read more about: Best HVAC Multimeter
03. Fieldpiece SMAN360 3- Part Digital Manifold With Micron Gauge
The digital Manifold SMAN 360 FieldPiece, has many benefits such as calculation of Overheating, Subcooling, built-in vacuometer, reading of up to 45 refrigerants with the possibility of updating and greatly facilitating the life of the technician in the field.
The Digital Manifold SMAN360 automatically calculates the desired superheat, so you won’t have to worry about manual calculations or deductions.
With the SMAN360, you will also have an integrated vacuometer with a resolution of 50 to 9,999 microns. Also, it has the vacuometer that has an alert option where users can set an alarm to a micron level.
During the use, when a certain level is reached, it will emit a sound, so you can pull the vacuum without any worries.
Easy to Use
This digital HVAC gauge can execute pressure sensors linear adjustment which is based on the kind of refrigerant, pressure, temperature, and also it is very easy to use. With the help of this gauge, you can complete your task in all the field.
By merging new technologies with an easy-to-use and intuitive interface, the SMAN360 model makes it very easy for users to maximize the efficiency quickly of any refrigeration or air conditioning.
Because they are built by the HVAC industry leader in innovation, you know they’ll be filled with the features you want.
- Works smoothly
- Firmware can be upgraded
- Good quality
- Some users complained that it shows inaccurate measurement sometimes
04. BELEY HVAC System Gauge Set
Beley is one of the best hvac vacuum gauge which is available in the market. If comes with many great features.
Super Convenient Gauge
This gauge can be calculated double pressure at a time. Also, it is designed with dual temperature calculations. It is loaded with other great features such as automatic temperature conversion Fahrenheit / Celsius, multi-units pressure conversions, etc.
It is designed with large size LCD so that you can easily read data also it supports backlight so you can use it even in the dark. Its switches are designed for long-life. 1/4″ standard interface designed to make sure its versatility and durability.
The Intelligent Device
It is an intelligent device that can be used for maintenance, testing, and installation of refrigerant instruments. Best for cold storage, fridge, and car air conditioners.
This HVAC System gauge has a double pressure test, digital readout, multi-mode functions, built-in refrigerants database, dual temperature test, multi-unit switching, and much more.
It has built-in 89 different types of refrigerant pressure-evaporation database system also calculate the subcooling superheat. Also, it can easily test leak time speed, and pressure leak measurements.
- All features in one single unit
- Easy to use
- Works simple and perfect
- Impressive look
- Some users complained that it shows inaccurate measurement sometimes
Read more about: Best Feeler Gauge
05. Fieldpiece SM480V Digital Manifold Wireless Data Logging
Fieldpiece has years of experience in making HVAC gauges. It is also one of the popular manufactures. Experience, power, and knowledge are packed into this new design SMAN SM480V refrigerant manifold.
Fieldpiece comes with this another great gauge which we have reviewed here.
Simply Strong Unit
This new gauge by Fieldpiece is super strong. It is designed with a reinforced hook, heavy-duty casing, its screen is impact resistant, water resistance, and hermetically sight glass sealed. These features show that this gauge is ready to withstand the flexibility of field use.
This unit is designed to offer many advance features to streamline your task. It can store up to 9 data internally. Easy downloadable using the USB port. It logs up to 7 days that is 168 consistent hours.
Fieldpiece SM480V also checks leaks after installations or repairs. Its timer tracks test duration. It also has a temperature compensated along with SL temperature to prevent from false positive.
You can easily set low and high vacuum alarm. Also, you can choose each measurement unit individually. Also, you can set the duration of its backlight. Customizable with auto power-off duration.
- Super strong design
- Large size full bore
- Super display
- Easy to use
- Many times it needs calibration
06. Testo 0563 1557 4 Way Valve Digital Manifold
Convenient and precise, this is another name of Testo 0563 HVAC digital gauge. It is loaded with many great features. Let us find out here.
Flexibility & Accuracy
With its sight glass, 4-way valve block, large backlit display, and 2 NTC thermistor clamps probes – All these features come in a single unit by Testo.
Testo 0563 1557 has a rugged design, so you can easily carry and use outdoor as well. Its compact design allows you to take on any job site.
It is designed with a large display so data can be read easily. Also, it has a 2-line backlit display in no time. The 60 onboard refrigerant profile eliminates the need for PT charts.
Testo Refrigeration App
Using Bluetooth, you can easily send measurement data on your tablet or smartphone with Testo Refrigeration App with a 65-ft range. You can conveniently and quickly document your job and finalize your report and later send it via email directly from the spot.
Also, you can upload new data directly to your manifold. Easy to read automatic calculations on large-sized display.
With Testo 0563 1557, you can do so many things with one single unit, you can trend tables and graphs and generate lists. Also, you can generate reports with a single push button including pictures and also you can send via email.
- Share data via Bluetooth
- Compact design
- 4-way valve block
- Rugged body
- Large display
- 2-line backlit display
- Easy to read
- Not reported so far
Read more about: Best UV Light for HVAC System
07. MASTERCOOL Blue 99872 Digital Manifold
MASTERCOOL is a leading manufacturer of professional quality gauges for climate systems. These kits are manufactured with the best materials and with high levels of quality. In MASTERCOOL each analyzer is manufactured to last.
In MASTERCOOL all pressure gauges are color coordinated for easy refrigerant identification. Mastercool Blue 99872 introducing this most advanced and easy to use HVAC gauge.
The Large Size & Easy to Read Display
It is designed with a large size and easy-to-read LCD that shows vacuum reading, pressure, and temperature.
Durability & Long-lasting Performance
This device offers durability and long-lasting performance. Also, it comes with a manifold case that is designed for ABS materials and secured by a rugged rubber boot.
This gauge also performs leak testing of a system at the end of the evacuation process. It makes sure durability and the best performance.
The professional has now a fully practical collector with intelligence for quick access and provides the exact information necessary to finish the job.
Mastercool Blue 99872 is designed with ABS material and protected with a sturdy rubber case that makes sure durability and long-lasting performance.
- Easy to read large display
- User-friendly design
- Comes with a complete kit
- Long-lasting performance
- Some users complained, it is unreliable
08. Fourth HVAC Digital Manifold System Gauge Set
This digital HVAC Gauge is one of the intelligent electronic instruments for the refrigerant group by the Fourth manufacturer. Let us find out its features:
The intelligent electronic instrument for the refrigerant group is an auxiliary instrument for the installation, testing, and maintenance of refrigeration equipment such as air conditioning, refrigerator, and cold storage.
The HVAC system meter has a double pressure test, double temperature test, digital reading, multi-unit saw.
Very Comfortable Tool
The unit is able to measure double pressure at the same time, as well as double temperature measurement, with automatic multi-unit pressure conversion, automatic Celsius / Fahrenheit temperature conversion, to enable different needs.
What You Get More
89 types of coolant pressure evaporation temperature database, also calculate the superheat of the subcooling, to facilitate the direct reading of the data of the operational processes.
It also checks the % of vacuum measurement, pressure leakage measurement, leakage speed log. This is worth buying, it is multi-functional, accurate and simply operated digital collector that allows you to do the accurate task.
The large-size LCD display and backlight support, clear and easy-to-read data display, also easy to operate light. It is designed with long-lasting valve switches, standard 1/4 inch interface design to ensure the versatility and durability of the instrument.
High Precision and Care
The instrument is using high-strength engineering plastic and variable non-slip silicone design. This digital HVAC gauge comfortable to hold and extremely solid. Integrated 32-bit digital processing unit and high precision data acquisition unit, high-quality data and stability.
- Large LCD backlit display
- High precision
- Premier design
- 2-way valve block
- Provide real-time probs
- Poor quality
Read more about: Best HVAC multimeter
09. DUOYI DY17A Full Kit
DUOYI DY17A unit is an auxiliary instrument for the installation, testing, and maintenance of refrigeration equipment, such as air conditioners, refrigerators, and cold rooms.
Double Pressure Test
DUOYI DY17A has a dual pressure test, dual temperature test, digital reading, multi-unit switching, multimode function, and built-in coolant database.
It is designed with robust plastic engineering and a flexible non-slipping silicone design. This whole unit is comfortable and solid to hold.
The integral 32-bit digital processing unit and high precision, high data and solidity data acquisition unit. Large liquid crystal display, LCD backlight support, clear and easy-to-read data display.
Easy to Operate
It measures double pressure air conditioner at the same time, as well as dual temperature measurement, with multi-unit pressure conversion, automatic Celsius / Fahrenheit temperature conversion, to meet different needs.
This gauge is designed with in-built database of 89 different types of refrigerant pressure-evaporation temp. Also, it calculates the superheating of the subcooling to simplify direct reading.
Work More Efficiently
HVAC digital gauge refrigeration system gauges test the vacuum measurement percentage, pressure leak measurement, speed record leakage time. You deserve to have this multifunctional, precise and simple digital gauge that allows you to do the job correctly.
89 built-in refrigerant types: According to the standard, Dimensions: 7.9 x 5.9 x 2 inches, weight: 6.317 pounds.
- Great value for money
- High strength
- Measures double pressures at the same time
- Multi-mode functions
- “Zero” out the gauges frequently
10. Testo 550 gauge Digital Manifold Kit With Bluetooth
Testo brought another gauge with rugged housing with its 550 models. This digital includes a metal frame around its display that protects the digital gauge from impact.
Testo 550 digital gauge is for your daily work. This is designed with 2-way metal valve blocks with 3 connections and 3 hose parkers. It allows technicians to work quickly and easily. It also comes with 2 clamps probes, case and batteries, and manifold.
60 Refrigerant Profiles
This model is designed with 60 refrigerant profiles and has added functionalities for leak test. It is versatile enough for all types of jobs.
Data on a Smartphone or Tablet
Now you can view measurement data on your tablet or smartphone with this model. It enables you to conveniently and quickly finish the document job. It also provides invoices and various reports via email directly from your job site.
With the help of Testo app, now you can easily download refrigerants directly into your digital gauge.
- Robust design
- Easy to manage measurement data
- 60 refrigerant profiles
- Leak test
- Remote monitoring
- Not reported so far
Read more about: How to Read a Feeler Gauge
User Buying Consideration about Best digital HVAC gauges
If you are not sure which is the best HVAC manifold gauge sets, here in this section, we are going to give you various buying consideration tip, thus, you will be able to select the best one.
Most digital HVAC gauges are made from metal. They use either aluminum or brass and some are more prone to rust than others. The connector fitting’s build quality should be considered while buying. Plastic fittings usually tend to develop leaks and wear out quickly.
The best hvac vacuum gauge should be easy to use and connect with quick coupling. It also has the color-coded so you can easily identify the high-pressure red color and low-pressure blue sides.
You should also look for a product that has a complete instruction manual. If your gauge is complicated to use, it will lead to leakages and improper connections that will eventually damage your Air Conditioner unit.
There are many fluorinated gases or refrigerant gases that are used in air conditioning units, the most common being R410, R407, R22 and their substitutes such as RS44 / R424A. However, there are many others.
Design of a Gauge
The two most usual reasons for the failure of a mechanical pressure gauge are water condensation and tube vibrations since in colder climates it can freeze and damage the meter cover. The delicate links, pinions, and pivots of traditional analog pressure gauges are delicate to both vibration and condensation.
The lifespan of the pressuring gauge with oil is longer, not only as it has fewer parts that are moving, but also its housing is filled with a viscous oil or glycerin. This oil filling is beneficial not only because it dampens the leading vibrations, but because it leaves no space for the entry of moist air. Consequently, water cannot accumulate and condense.
When using digital pressure gauges, the availability of energy, battery life, ambient temperature/process temperature, humidity, and shock/vibration must be considered.
Should Have Extra Features
When you are going to buy a new digital HVAC gauge, other than hoses and gauges, you should also look for extra features like a can tap and sighting glass. Also, it should have converters such as R-12 or R134A units which you may require.
Adapter plays an important role in terms of converting the application of the AC System. If your car has different applications, you should ensure the gauges come with adapters or you will need to buy another gauge for your car’s applicable gauge.
Although sighting glass is not important, it may turn your task easier. Using sighting glass, you can check easily what is going inside. If you HVAC gauge all the latest features which you are looking for, you can skip this facility.
Other Important Things to Consider
We have written a small list of tips which you can also say buying guide for anyone interested in buying the best hvac manifold gauge sets. This list of tips contains the most important criteria in the form of a checklist that is worth taking into account when choosing and buying a product.
If you stick to this list made by our experts, we are sure that you will find the best product in the category of digital HVAC gauges.
- Manufacturer: Are there renowned manufacturers or known brands for HVAC Gauge?
- Test Reports: Are there informed and informative test reports on the subject?
- Customer Ratings and Reviews: Are there reviews available from people who have purchased and tested the product?
- Product Measures: What measures are necessary and what sizes exist?
- Organization of Consumers and Users: What current test results have the consumer organization published about the digital HVAC gauge?
- Test Results: Which models were the winners of the tests of the combined pressure product group and temperature meters?
- Price: Consider your budget for a gauge that comes with pressure and temperature meters.
- Comparison: At this point, we recommend you make an extensive price comparison to find the best one.
The most important point of the previous checklist is that of the results of the OCU tests. Reports and winners of consumer organization tests about gauge can be very useful in finding the best product.
Digital Gauge Sets vs Compound Manifold Gauges: Face to Face Comparisons
FAQs for the Best HVAC Manifold Gauge Set
We know there are many questions come to your head while buying the best HVAC vacuum gauge, so here we have answered the most frequently asked questions.
Q. How does a HVAC pressure gauge work?
A: Pressure gauges can measure pressure in different units such as bars, psi (pounds per inch squared, pascals or atmospheres.
In order to determine pressure changes, these measuring devices need some type of mechanism that varies in magnitude when subjected to different pressures and a display that shows this change transformed into pressure units (digital pressure gauge) or a scale in the that we can follow this variable (analog pressure gauge).
Q. What are they made of and what do cooling gauges measure?
A: The first thing to know is that the cooling gauge is made of iron and copper and covered by a generally blue or red housing.
Also known as an HVAC pressure gauge, it is used to measure the refrigeration system or all types of pressure gauge freezing systems. For example, air conditioners, refrigeration storage systems in cold rooms, industrial refrigerators, cold coal filling equipment, as well as central air conditioning.
Pressure gauges are one of the main tools when checking, repairing and determining a failure in the air conditioner. With them, we can notice very important factors when it comes to concluding a repair.
Q. How are the best digital HVAC gauges used?
A: It is very important to know the proper order for use and avoid altering the order. The reason is that we can suffer losses of refrigerant gas, burns caused by this same gas, losses of oil that is carried away by the refrigerant and an endless number of inconveniences that we can avoid taking into account the following details:
- Low-pressure gauge placement. At the time of placing it, it is advisable that the equipment is turned on since the refrigerant gas will be circulating and we will have pressure hands being turned off.
- Remove the pressure gauge. Also, in this case, it is recommended that the device be turned on for lower pressure and avoid the loss of refrigerant.
- Some models bring a viewfinder in the center. It is a very useful detail since it allows us to observe the passage of the refrigerant.
Q. What are the color codes of the HVAC gauge to know how to use it?
A: Here are the color codes of the pressure gauge to know how to use it.
Blue: It is designed to measure the suction pressure of the compressor. On its scale, from zero up, it measures the pressure above the atmospheric and from zero down, it measures the vacuum.
Red: With this color, we identify the watch and high-pressure hose. It has great utility since we can know if there are high pressures that harm the air conditioning. It is also important to test a compressor by pumping it out at the outlet and turn it on.
Types of Houses
Blue: It goes from the service port of the compressor suction valve to the low-pressure gauge.
Red: It goes from the service port of the compressor discharge valve to the high-pressure gauge.
Yellow: It is connected to the central fitting of the pressure gauge set and is used to perform all the services required by the system: vacuum, pressurize with nitrogen and inject refrigerant, among others.
Q. What care does the cooling gauge have to have?
A: There are protective rubbers that are placed on the clocks and help to increase the lifetime of these by their great absorption of impacts. These rubber bands cover the back of the watches and are red and blue.
It is advisable to periodically adjust the screws on the back. And, thus avoid the mismatch of them to prevent them from loosening.
We must avoid spills of dehydrating liquids at the time of cleaning the internal systems of the air conditioner, since if it comes in contact with the manometer covers, it opaque and it is impossible to read through them.
Keep your air conditioner or refrigerator in optimal conditions, and extend its life to enjoy functionality and comfort all year round without any fright.
Read more about: Best Budget Multimeter
When installing refrigeration systems, accuracy is still the most important factor to be observed. That is why a well-regulated system works better and lasts longer. In addition to avoiding waste and ensuring that the life of the devices is extended.
However, a digital HVAC gauge combines the functions of several tools. In this sense, the investment in high-tech tools such as the best digital HVAC gauges ensure not only that your work is agile, but also efficient.
This increases the satisfaction of the end customer and, consequently, facilitates their return.
